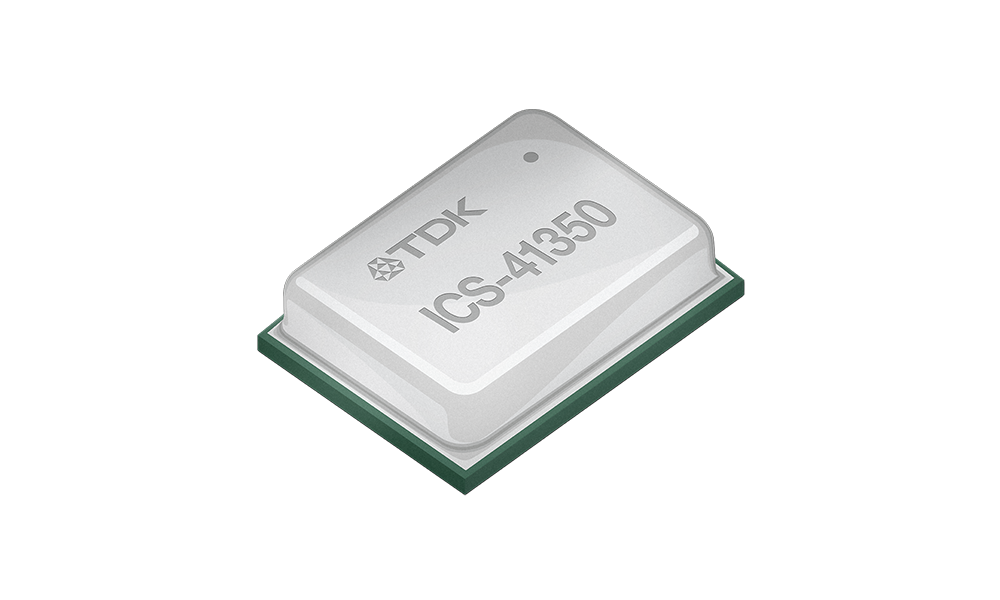

ICS-41350
Note: The ICS-41350 is marked as EOL and is not recommended for new designs.
The ICS‐41350 is a low‐power, low‐noise digital MEMS microphone in a small package. It consists of a MEMS microphone element and an impedance converter amplifier followed by a fourth‐order Σ-Δ modulator. The pulse density modulated (PDM) interface allows two microphones to be time multiplexed on a data line using a single clock.
Features
- 3.5 × 2.65 × 0.98 mm surface‐mount package
- Low power: 185 μA in Low‐Power Mode
- Extended frequency response from 50 Hz to >20 kHz
- Ultrasound support up to 40 kHz
- Sleep Mode: 12 μA
- High power supply rejection (PSR): -97 dB FS
- Fourth‐order Σ‐Δ modulator
- Digital pulse density modulation (PDM) output
- Compatible with Sn/Pb and Pb‐free solder processes
- RoHS/WEEE compliant
Product key details
| Operation |
- |
| Package Size |
0.98 x 3.50 x 2.65 |
| Output Type |
PDM |
| Port Location |
bottom |
| Snr |
64.00 |
| Aop |
120.00 |
| Sensitivity (1 KHz, 94 DB SPL) |
- |
| Sensitivity DB FS ±1 DB |
-26.00 |
| Lf Cutoff |
50 |
| Status |
eol |
