production

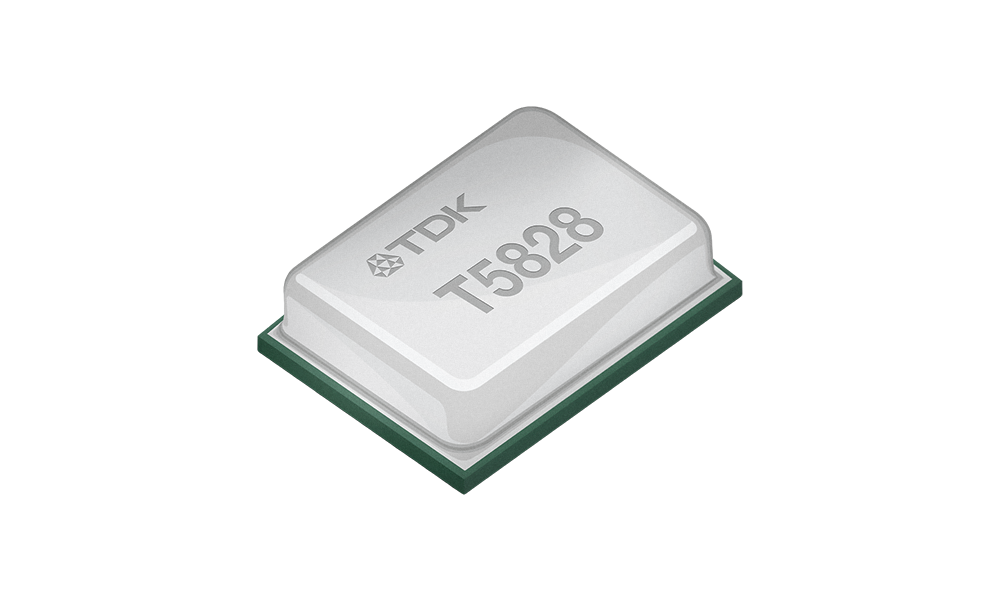

T5828
Bottom Port SoundWire® Digital Output Multi‑Mode Microphone
The T5828 is a low noise, high AOP digital MEMS microphone in a small package with a fifth‑order Σ‑Δ modulator. The digital interface is a MIPI Alliance SoundWire® compliant interface which allows for control bits and bi‑directional data flow.
Features
- Second generation SoundWire microphone with industry leading low power consumption in high quality mode and low power mode
- High SNR and AOP in all operational modes
- Multiple sub-modes for greater configurability: High AOP, Ultrasonic, Ultra Low Power, Acoustic Activity Detect
- Acoustic Activity Detect w/ programmable thresholds & filters with power consumption as low as 20 uA
Product key details
| Operation |
- |
| Package Size |
0.98 x 3.50 x 2.65 |
| Output Type |
SoundWire |
| Port Location |
bottom |
| Snr |
68.00 |
| Aop |
133.00 |
| Sensitivity (1 KHz, 94 DB SPL) |
- |
| Sensitivity DB FS ±1 DB |
-41.00 |
| Lf Cutoff |
35 |
| Status |
production |
