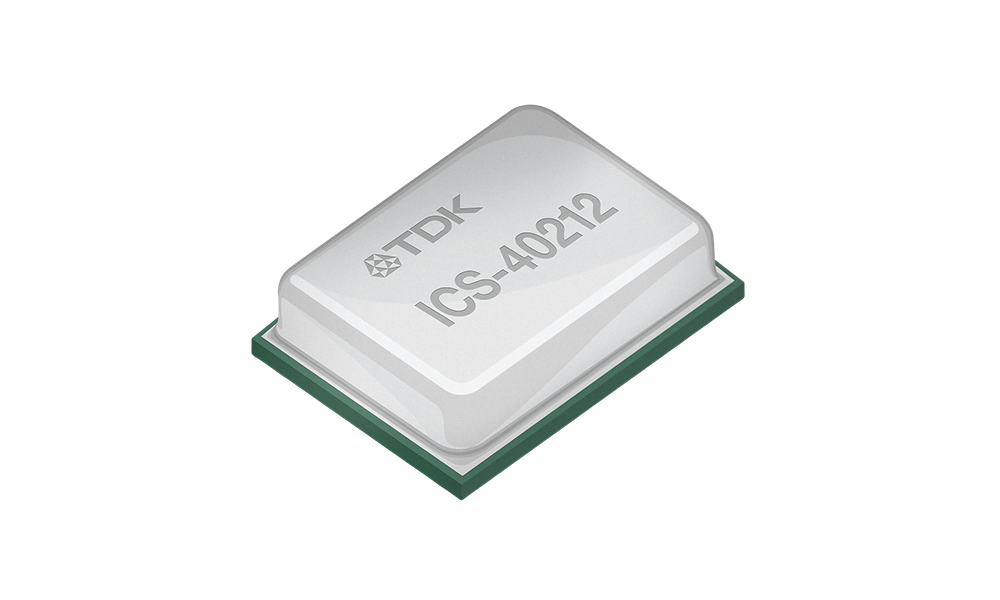

ICS-40212Analog Microphone with Low Power ModeThe ICS-40212 is an analog MEMS microphone with very high dynamic range and a low-power AlwaysOn mode. The ICS-40212 includes a MEMS microphone element, an impedance converter, and an output amplifier. This microphone features a low-power mode, which is active when the supply voltage is <2.0V. In this mode, the ICS-40212 operates with 55 μA. Other high-performance specifications include 128 dB SPL acoustic overload point in high performance mode, tight ±1 dB sensitivity tolerance. The ICS-40212 is available in a small 3.50 × 2.65 × 0.98 mm bottom port surface-mount package. |
|
|
| Product | Package Size | Output | Port Location | SNR (dBA) | AOP (dB SPL) | Sensitivity (dbfs) | LF Cutoff (Hz) | Status | Purchase |
|---|---|---|---|---|---|---|---|---|---|
 ICS-40212 | 3.5 × 2.65 × 0.98 | Analog | Bottom | 66 | 128 | 35 | Production |
|
|
| Datasheet / Product Brief | Version | Updated | Download |
|---|---|---|---|
| DS-000126 – ICS-40212 Datasheet | 1.3 | 2020-04-15 |  |
| App Notes & User Guides | Version | Updated | Download |
|---|---|---|---|
| AN-1112 – Microphone Specifications Explained | 1.1 | 2016-06-15 |  |
| AN-1124 – Recommendations for Sealing InvenSense Bottom-Port MEMS Microphones from Dust and Liquid Ingress | 1.0 | 2014-03-21 | |
| AN-1140 – Microphone Array Beamforming | 1.0 | 2013-12-31 | |
| AN-1003 – Recommendations for Mounting and Connecting InvenSense MEMS Microphones | 1.0 | 2013-12-31 | |
| AN-1165 – Op Amps for MEMS Microphone Preamp Circuits | 1.0 | 2013-12-31 | |
| AN-000013 – Analog Output MEMS Microphone Flex Evaluation Board User Guide | 1.5 | 2017-06-12 |  |
| Low Self Noise: The First Step to High-Performance MEMS Microphone Applications | 1.0 | 2013-12-31 | |
| Analog and Digital MEMS Microphone Design Considerations | 1.0 | 2013-12-31 | |
| Understanding Microphone Sensitivity | 1.0 | 2013-12-18 | |
| Inter-IC Digital Audio Interfaces | 1.0 | 2013-11-31 | |
|
|
