announced

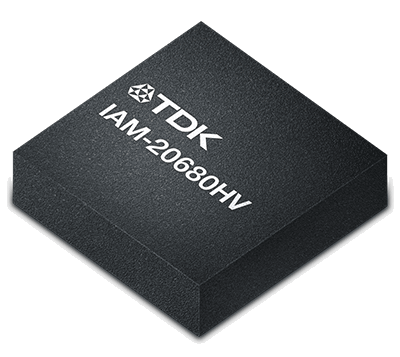

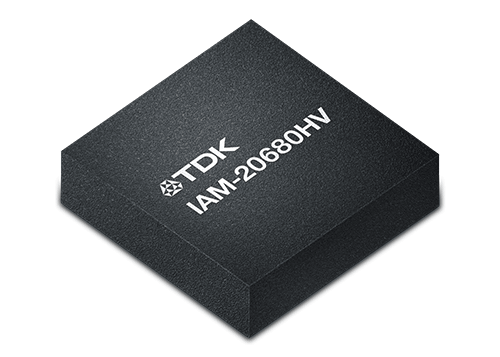

IAM-20680HV
High-Value SmartAutomotive™ 6-Axis MotionTracking® MEMS Device for Automotive Applications
High-value 6-axis device featuring a programmable gyroscope, on-chip 16-bit ADCs and much more.
Great for Dead Reckoning, Vehicle to Vehicle location, and Vision Systems
Product Features and Benefits
- Digital-output X-, Y-, and Z-axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±125 dps, ±250 dps, ±500 dps, and ±1000 dps, integrated 16-bit ADCs
- Digital-output X-, Y-, and Z-axis accelerometer with a user-programmable full-scale range of ±2g, ±4g, ±8g, and ±16g and integrated 16-bit ADCs
- User-programmable digital filters for gyroscope, accelerometer, and temperature sensor
- Embedded Self-test
- Two interrupt lines
- Wake-on-Motion interrupt with per-axis feature for low power operation of applications processor
- Reliability testing performed according to AEC–Q100: PPAP and qualification report available upon request
- Final test at -40°C, 25°C, and +105°C
Target market & applications
- Navigation Systems Aids for Dead Reckoning
- Lift Gate Motion Detection
- Accurate Location for Vehicle to Vehicle and Infrastructure
- View Camera Stabilization and Vision Systems
- Head-up display (HUD) and augmented reality HUD
- Car Alarm
- Telematics
- Insurance Vehicle Tracking
Product key details
| Operation |
- |
| Package Size |
0.75 x 3.00 x 3.00 |
