ICU-30201

High-Performance Ultra-Compact Ultrasonic Time‑of‑Flight Sensor for Ultra-Long-Range Applications

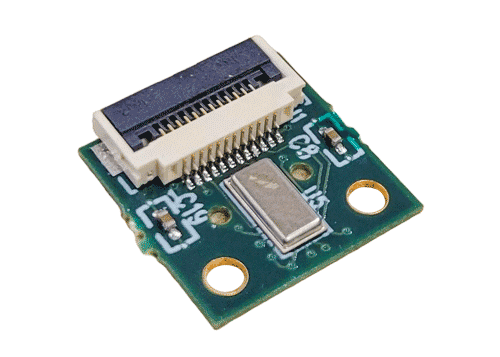

The ICU-30201 is a high-performance ultrasonic Time-of-Flight sensor that is ideal for measuring the range of objects between 30cm and 9.5m, and offers a customizable field-of-view of up to 180º. It has a sample rate of 75 samples per second at 2 meter, and 18 samples per second at 9 meters. It comes in a 5.17 × 2.68 × 0.9 mm LGA package, and includes an integrated DSP for signal processing.

The ICU-30201 extends battery life via its ultra-low power consumption (22µA – 318µA depending on the number of samples per second), and is highly flexible thanks to a large amount of embedded program and data memory. It is also available in a module.

• Operating Range: 30cm to 9.5m
• Customizable field of view up to 180°
• Ideal for ultra-long range applications
• Ultra-low power consumption extends battery life
• Integrated high performance DSP runs ultrasonic firmware freeing up system micro-controller resources

• High flexibility – large embedded program/data memory
• Works in any lighting condition and can detect transparent surfaces

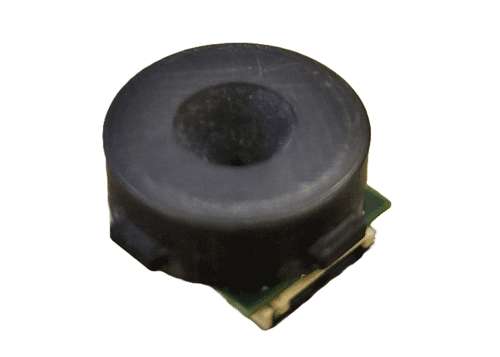

• Available in modules as well
