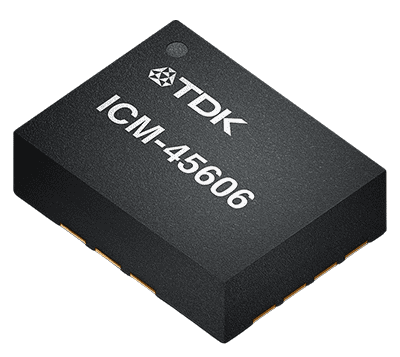

ICM-45606

High Performance 6-Axis MEMS MotionTracking™ Device

The ICM-45606 is a high performance 6-axis MEMS MotionTracking device. It has a configurable host interface that supports I3C℠, I²C and SPI serial communication, and an I²C master mode interface for connection to external sensors. The device features up to 8Kbytes FIFO and 2 programmable interrupts.

The ICM-45606 supports the lowest gyro and accel sensor noise in this IMU class, and has the highest stability against temperature, shock (up to 20,000 g) or SMT/bend induced offset as well as immunity against out-of-band vibration induced noise. Other industry-leading features include InvenSense on-chip APEX Motion Processing engine for gesture recognition, activity classification, along with programmable digital filters, and an embedded temperature sensor.

• Gyroscope Noise: 3.8 mdps/√Hz & Accelerometer Noise: 70 μg/√Hz
  • Low-Noise mode 6-axis current consumption of 0.42 mA at 1600Hz
• User selectable Gyro Full-scale range (dps): ±15.625/31.25/62.5/125/250/500/1000/2000
• User selectable Accelerometer Full-scale range (g): ±2/4/8/16
• User configurable internal pull-up/pull-downs included on I/O interfaces to reduce system costs associated with external pull-ups/pull-downs

• User-programmable digital filters for gyro, accel, and temp sensor
• APEX Motion Functions:
  • Single Tap / Double Tap / Triple Tap Detection, Wake on Motion, Freefall Detection, Low-G Detection, High-G Detection, Activity Inactivity Detection, Bring To See, Gyro Assisted Fusion, Sensor Inference Framework, Vocal Vibration Detection
• Host interface: 12.9 MHz I3C℠, 1 MHz I²C, 24 MHz SPI
