IIM-46230

High-Performance SmartIndustrial™ 6-Axis MotionTracking® MEMS Device for Industrial Applications

The IIM-46230 is a 6-axis MotionTracking device that combines multiple 3-axis gyroscopes and 3-axis accelerometers packaged in a module that is approximately 23 × 23 × 8.5 mm and includes a standard 20 pin connector interface.

The IIM-46230 module is based on Multi Inertial Measurement Unit(MIMU) concept, utilizing 6 of the same industrial 6-axis IIM-42652 sensors. The performance of the thermal related specification was improved by performing custom thermal calibration for every module in the temperature range (-40 to 85°C). The module utilizes a very low PPM oscillator to improve stability of the clock. The noise and bias instability of the module is improved by improving the Signal to Noise Ratio (SNR) of the measure.

The IIM-46230 supports SPI and UART communication with easy to use protocol. There is provision to prove UTC clock as a command and provide PPS signal from the GPS for the IMU to lock to the sampling time stamp to the UTC time.

The IIM-46230 includes multiple capabilities to enable easy, robust and accurate inertial measurements in Industrial applications, and features an operating voltage range from 3.6 V down to 3.0 V.

IIM-46230


Highlights

  • TDK proprietary SensorFT™ (Fault Tolerance) feature that delivers built-in redundancy and early warning
  • Robustness to shock and vibration

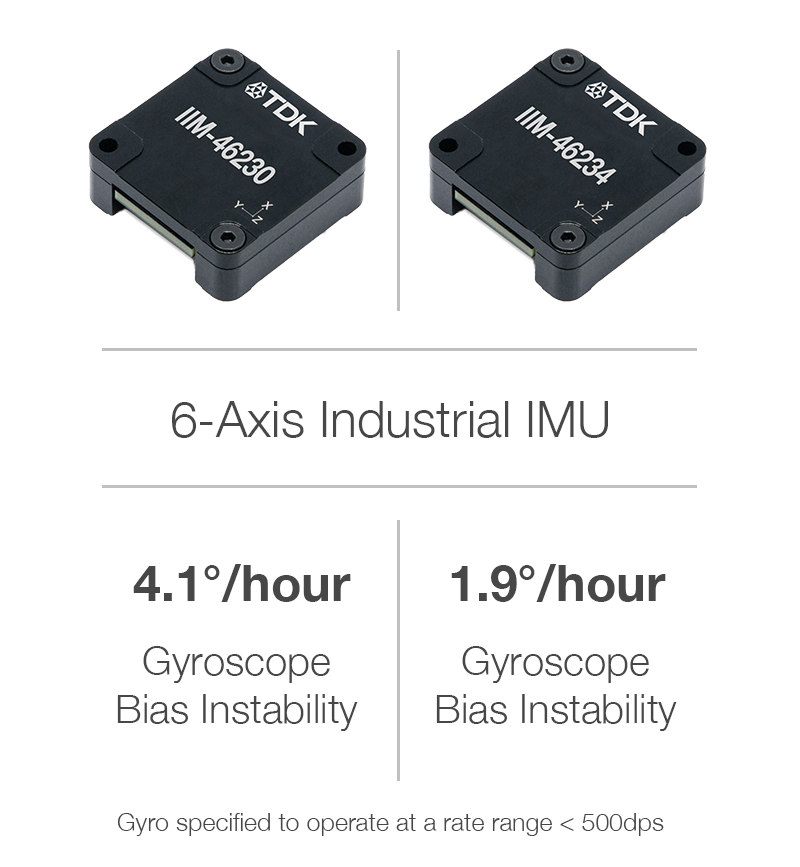

  • 4.1º/hour gyroscope bias instability

Target Markets

  • Precision Agriculture
  • Construction Equipment
  • HD Mapping, surveying, and Georeferencing
  • Industrial, Warehouse, and Automobile Robotics

Longevity Program Information


Product Details

ProductTypePackage
Size

(mm)
Gyro
Sensing Range

(º/sec)
Accel
Sensing Range

(g)
InterfaceCommentsPurchase

IIM-46230
6-Axis IMUModule±2000±16UART / SPIHigh performance, fault tolerant, low bias instability

DK-46230
The DK-46230 is a comprehensive evaluation platform for IIM-46230. It enables quick development and evaluation of the IIM-46230 with the eMD software package.

Features & Benefits

  • Multiple 6-axis IMUs
  • Factory calibration over entire operating temperature range for offset, sensitivity (scale factor), G-sensitivity, and cross-axis sensitivity, enabling accurate measurements across entire operating temperature range
  • SPI and UART Support
  • Temperature range of -40ºC to 85ºC
  • Temperature output
  • 23 × 23 × 8.5 mm Module with a 20-pin connector
  • Low bias instability, ARW and VRW
  • TDK’s unique SensorFT™ feature delivers built-in redundancy and early warning against individual sensor failures
  • Ultra-low-noise sensors that deliver precise measurements, even in harsh environments
  • Micro-second time stamps with all sensor measurements for accurate timing transfer

Applications

Precision Agriculture

Construction Equipment

HD Mapping, surveying, and Georeferencing

Industrial, Warehouse, and Automobile Robotics

Bridge GNSS outage and provide terrain compensation inputs during normal operation in various agricultural environments, particularly for equipment navigation, guidance, and positioning.

  • Equipment navigation / positioning
  • Precision guidance for spraying, harvesting
  • Bridge GNSS / GPS outage
  • Provide terrain compensation inputs

Maintain blade and bucket position on bulldozers, excavators, motor-graders, etc. during normal operation. Additionally, the IMU data is coupled with GNSS to constrain position and bridge GNSS outage.

  • Equipment navigation / guidance / positioning
  • Bridge GNSS / GPS outage
  • Tilt sensing
  • Maintain blade and bucket position on bulldozers, excavators, motor-graders, etc

Precision data enabling the creation of HD maps and surveys, but also provide exact position for stabilization and location.

  • Camera stabilization
  • Survey equipment stabilization
  • Navigation, Dead reckoning

Industrial robots use motion data to enable automation, improve efficiency and monitor conditions, as well as the precise motion and vibration measurements produced.

  • Navigation, Dead reckoning
  • Platform stabilization


Documentation & Resources

Datasheet / Product BriefVersionUpdatedDownload
DS-000300 – IIM-46234 & IIM-46230 Datasheet1.32022-09-28Datasheet
App Notes & User GuidesVersionUpdatedDownload
AN-000383 – DK-46230/DK-46234 User Guide1.12023-02-09User Guide
AN-000392 – IIM-46230/IIM-46234 Motion Handling and Assembly Guide1.02022-12-15User Guide
Environment / RoHS / Packaging InfoVersionUpdatedDownload
AN-000393 (pg. 20) – IMU PCB Packaging Info1.42024-01-19App Note
QAR-001-00 – InvenSense RoHS 2.09.12023-02-08App Note
Software
(Note: Account required to download)
VersionUploadedDownload
SmartMotion Installer w/ IndustrialMotionLink1.0.12023-04-18Download Zip File
DK-4623X SmartIndustrial eMD2023-05-18Download Zip File
