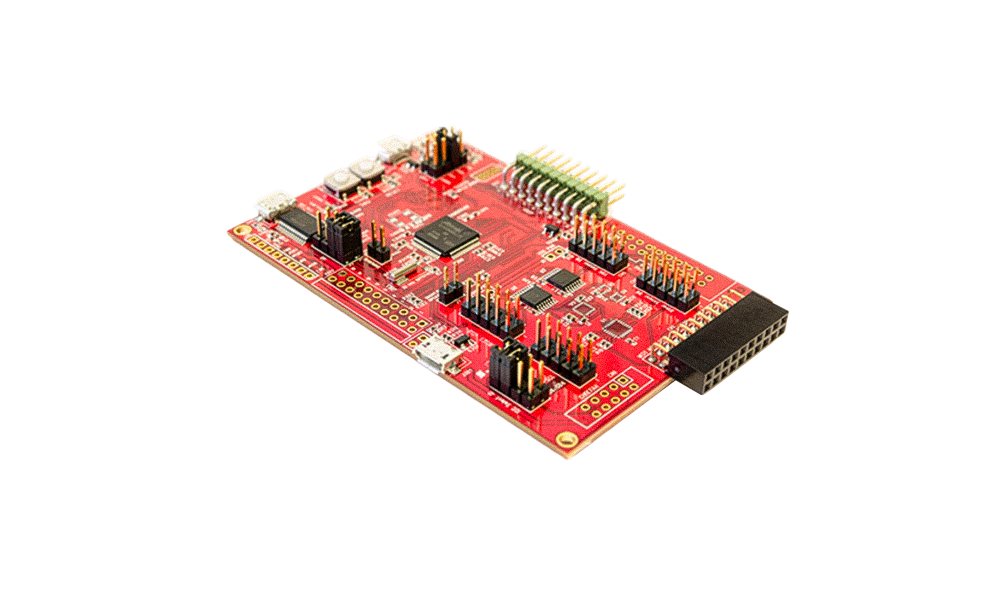

DK-10111Development Kit for ICP-10111 SmartPressure™ SensorThe DK-10111 is a comprehensive development platform for ICP-10111, a High Accuracy, Low Power, Barometric Pressure and Temperature Sensor IC. The platform designed around Microchip G55 MCU can be used by developers for rapid evaluation and development of ICP-10111 based solutions. The DK-10111 includes an on-board Embedded Debugger so external tools are not required to program or debug the G55 MCU. The development kit comes with necessary software including InvenSense MotionLink, a GUI based development tool and embedded Motion Drivers for ICP-10111. Embedded Motion Drivers (eMD) consists of a set of APIs to configure various aspects of the platform including ICP-10111 sensor parameters such as Raw Data, and Calibrated Data (Temp in C, Pressure in Pa). MotionLink is a GUI based development tool included with the platform. It can be used to capture and visualize the sensor data from the motion sensor. |
|
|
| Product | Package Size (mm) | Waterproof | Range (kPa) | Power Consumption (µA) | Digital Output | Logic Supply Voltage | Operating Voltage Supply | Status | Purchase |
|---|---|---|---|---|---|---|---|---|---|
 ICP-10111 | 2 × 2.5 × 0.92 | No | 30 – 110 | 1.3 | I²C | 1.8V | 1.8V | Production | |
 DK-10111 | SmartPressure™ Development Kit for ICP-10111 Pressure Sensor | ||||||||
|
|
| App Notes & User Guides | Version | Updated | Download |
|---|---|---|---|
| SmartMotion® Platform Introduction Training: TDK InvenSense Development Tool for Motion Sensors | 2019-04-22 |  |
|
| SmartMotion Hardware User Guide |  |
||
| SmartMotion Platform Quick Start Guide (for DK-101xx) | |
||
| SmartMotion Platform Hardware Specs & Materials ver. C | C |  |
| Software (Note: Account required to download) | Version | Uploaded | Download |
|---|---|---|---|
| SmartMotion Installer w/ MotionLink | 4.2.18 | 2024-10-09 | |
| DK-101xx SmartMotion eMD | 1.2.1 | |
|
|
